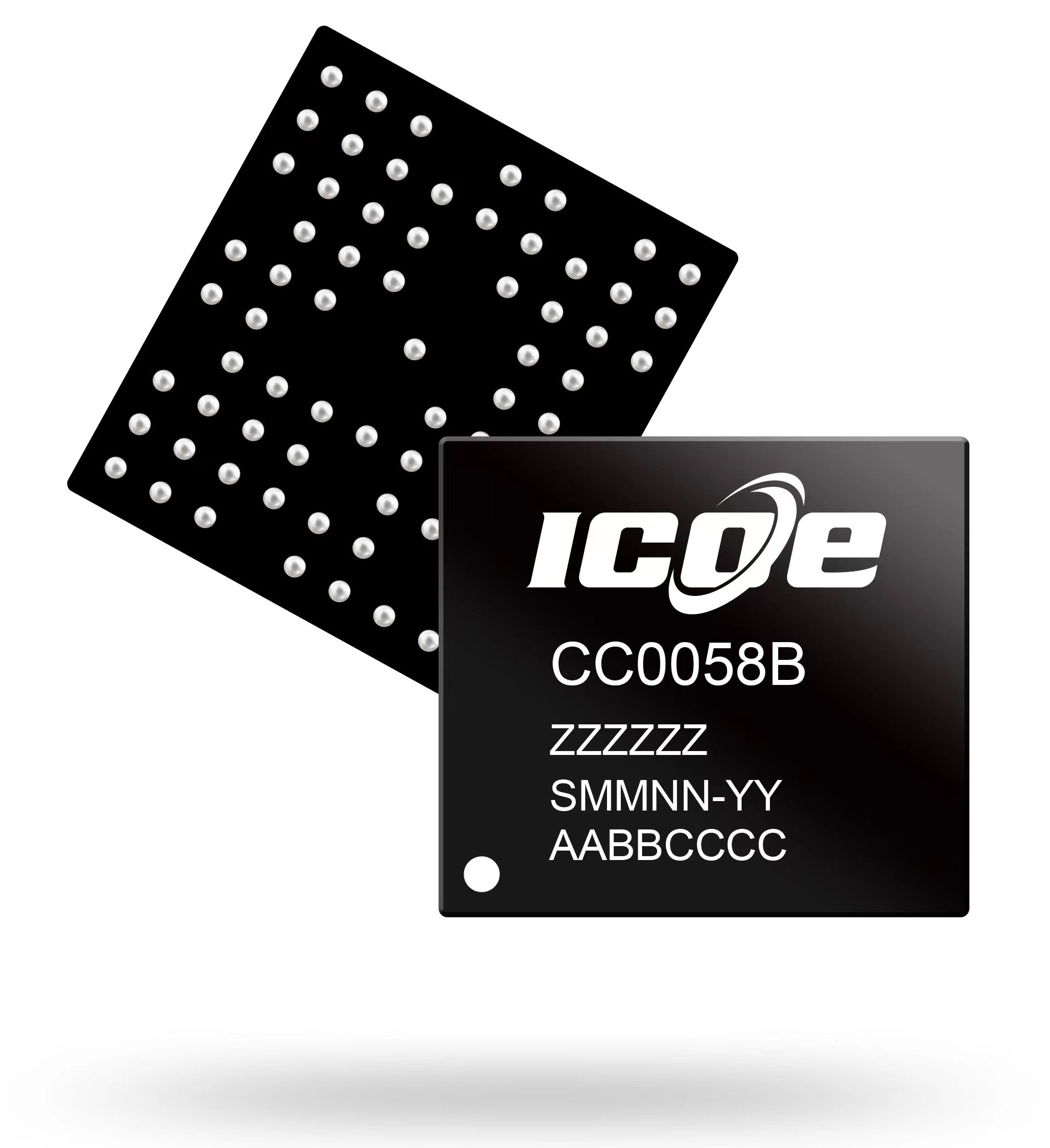

Dual-frequency low-power GNSS chip

CC0058B is an integrated GNSS SoC developed by ICOE, which supports dual-band, multi-system and low-power consumption. it has the performance of low power consumption, high accuracy, high sensitivity, and strong anti-jamming capability.
This SoC is oriented to global applications, it can support BDS, GPS, GLONASS, Galileo, QZSS, and NAVIC positioning systems at the same time, based on L1+L5 dual-band multi-system joint positioning, it can achieve excellent multipath suppression capability, which can significantly improve the positioning experience of products beside high-rise buildings, under the shade of trees and in urban multipath environment, it is widely used in wearable devices, smartphones, tablets, positioning cards and other applications.

Learn more

Technical advantages

Designed for global applications, supporting multi-system dual-band joint positioning

Supports BDS, GPS, GLONASS, Galileo, QZSS, and NAVIC multi-system L1+L5 dual-band multi-system joint positioning.

Low-power consumption

Based on advanced technology, it realized low-power and dual-band tracking, extending the endurance time of battery.

Ultra-high sensitivity

The acquisition sensitivity is better than -148dBm, and the tracking sensitivity is better than -165dBm.

AGNSS is supported

Supports Real-Time and StarCourse AGNSS positioning function, to shorten the first positioning time of the product.

Excellent multipath rejection

Supports L1+L5 dual-band, has excellent multipath rejection.

Package

BGA：3.8x4.2x0.8(mm)，3000pcs/reel.

Product Specifications

Technical performance

Constellations

BDS: B1I、B1C^*、B2a、B2b^*
GPS: L1C/A、L1C、L5
GLONASS: L1
Galileo: E1B/C、E5b、E5a
QZSS: L1、L5
SBAS: L1
NAVIC: L5

Accuracy^①

RMS <1.0m （(dual-band and four-systems, open sky area)
Velocity accuracy：0.1m/s

Time synchronization accuracy（1PPS）

20ns(2sigma)

TTFF^②

Cold start：24s
Hot start：1s
Re-acquisition：1s

Sensitivity^③④

Cold start(dBm)：-148
Hot start(dBm)：-157
Tracking(dBm)：-165
Re-acquisition(dBm)：-160

Tracking power consumption

＜25mW (Dual-band external eBuck mode)

Update Rate

1Hz~10Hz

Data format

NMEA-0183，ICOE protocol

Others

Main power supply

1.7V~3.6V

IO power supply

1.7V~3.6V

Backup power supply

1.7V~3.6V

Communication interface

UARTⅹ2

Operating temperature

-40~+85℃

Storage temperature

-40~+125℃

Reliability and certification

Comply with JEDEC standards, RoHS and REACH compliant

Package

BGA：3.8ⅹ4.2ⅹ0.8(mm)，3000pcs/reel

Operational limites

Dynamics range≤4g
Altitude≤18,000m
Velocity≤500m/s

Note:
^①33mps linear uniform motion scene under simulator
^②the satellite signal strength of simulator is -130dBm
^③dual-band, SAW->eLNA->SAW. test results under the condition that CN0 is 41dB @-130dBm
*Indicates that this feature is under development
(The detailed parameters of the product shall be subject to the latest version of the product datasheet)
